Glass bedside panel GBP3-60 is part of a comprehensive range of iNELS control units for guest room management system (GRMS). Bedside panel is composed from 3-MODULE, of which one is module of touch buttons and two are modules to power for example mobile devices.

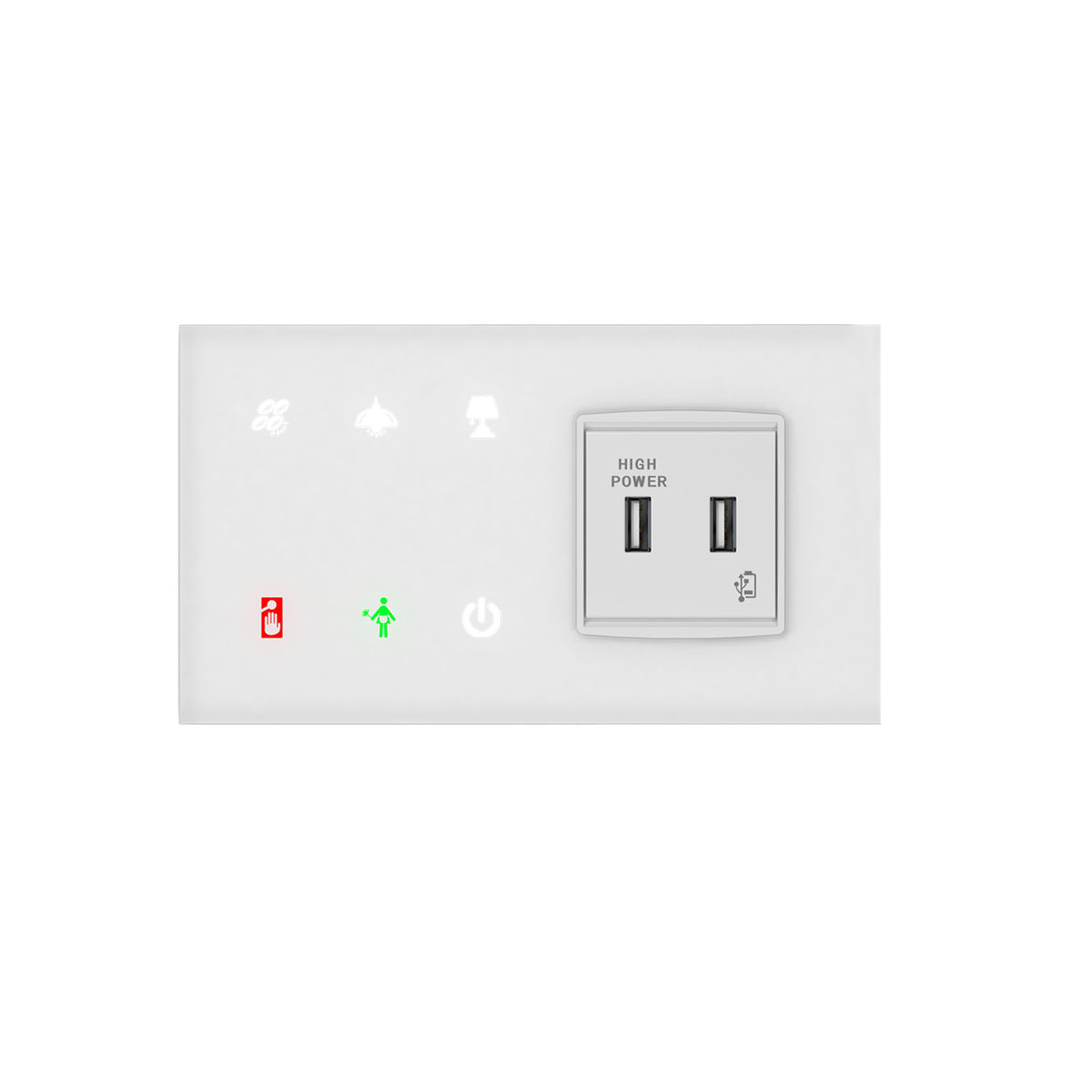

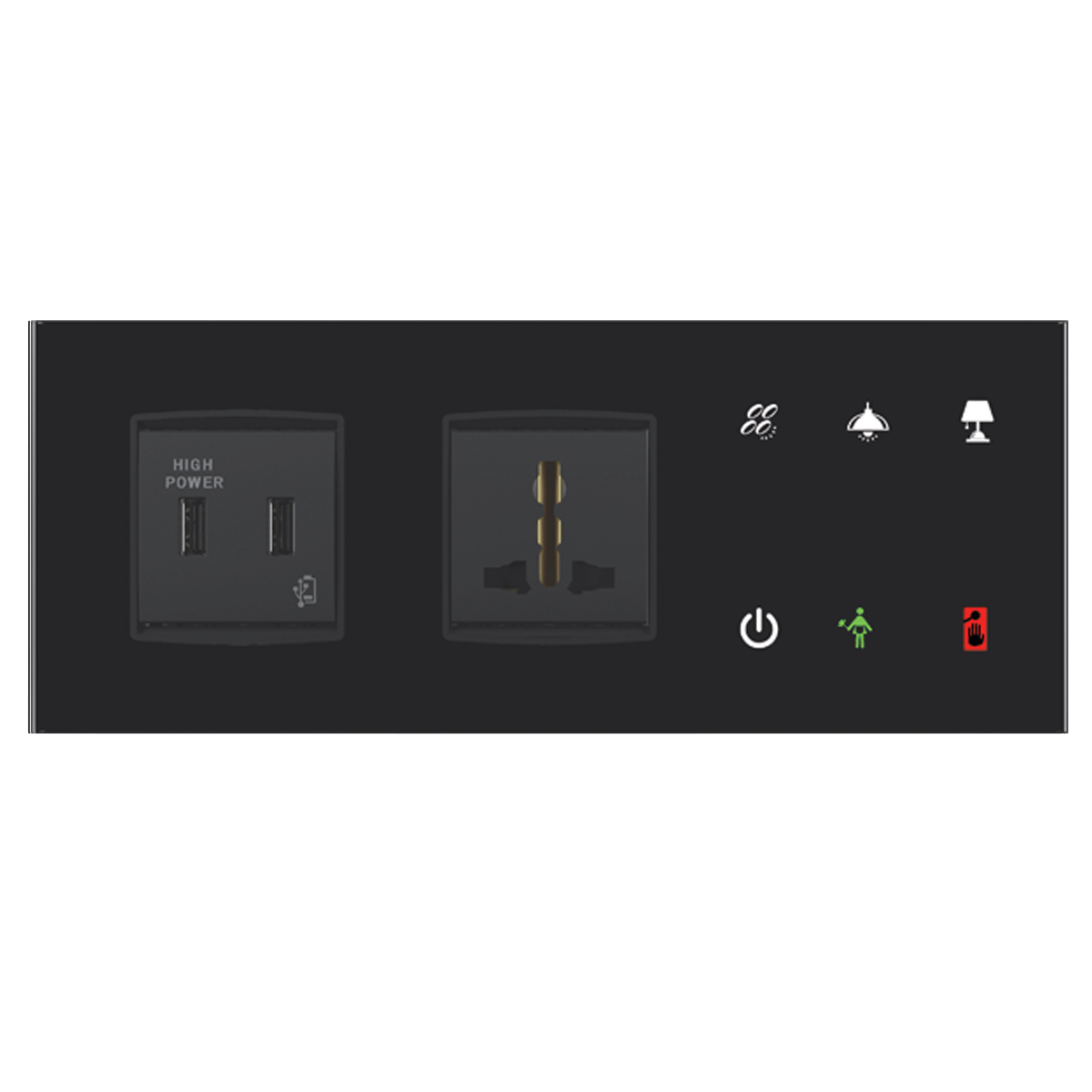

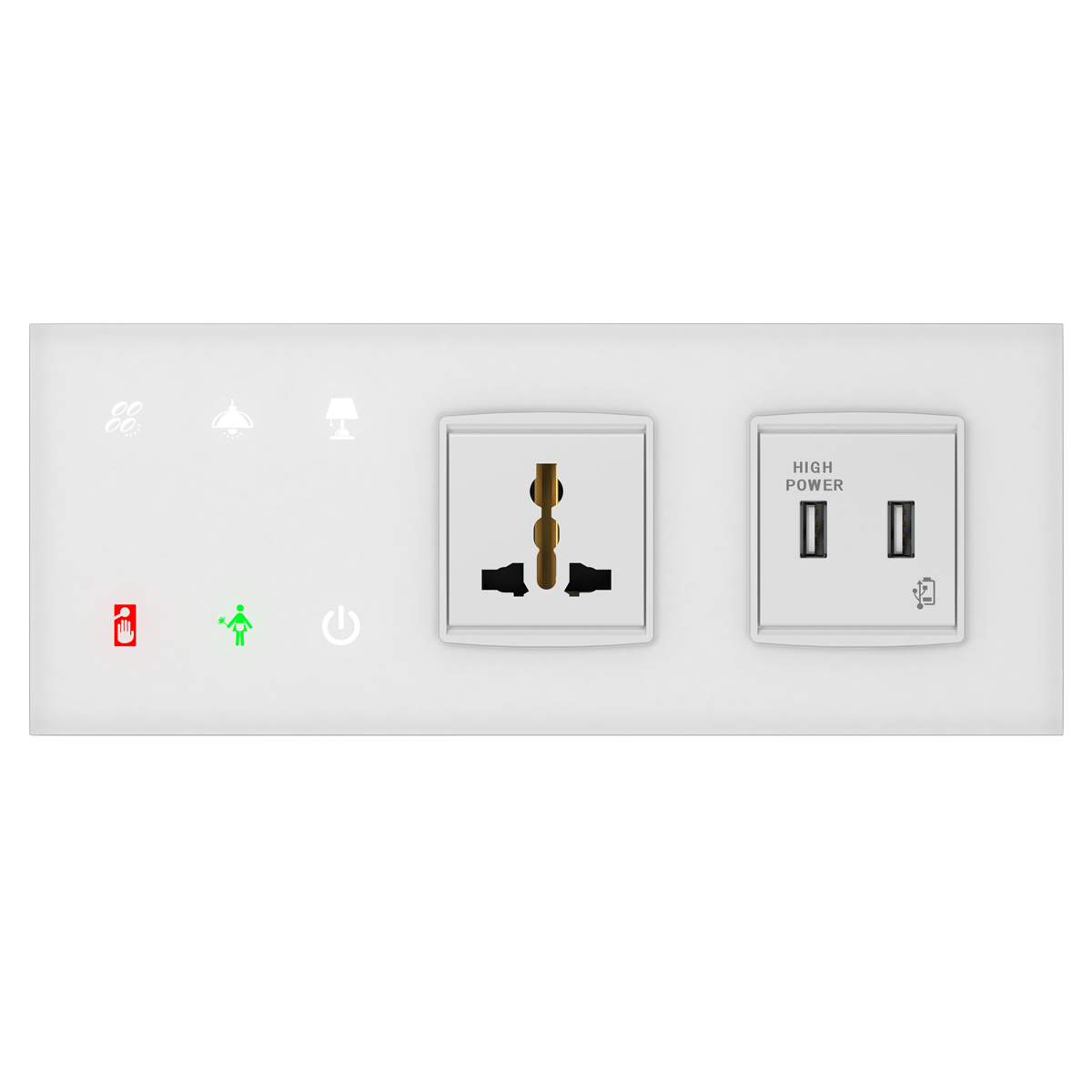

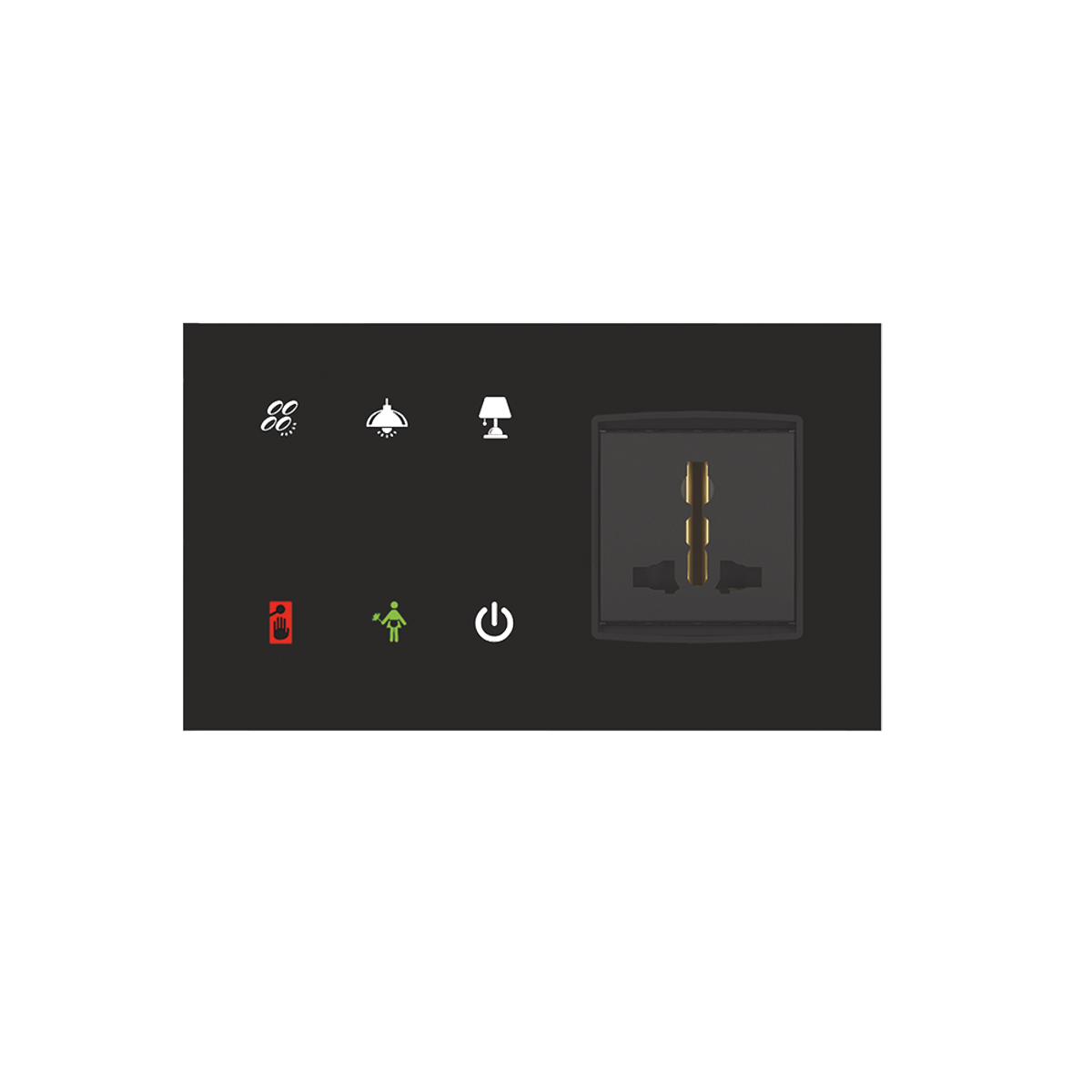

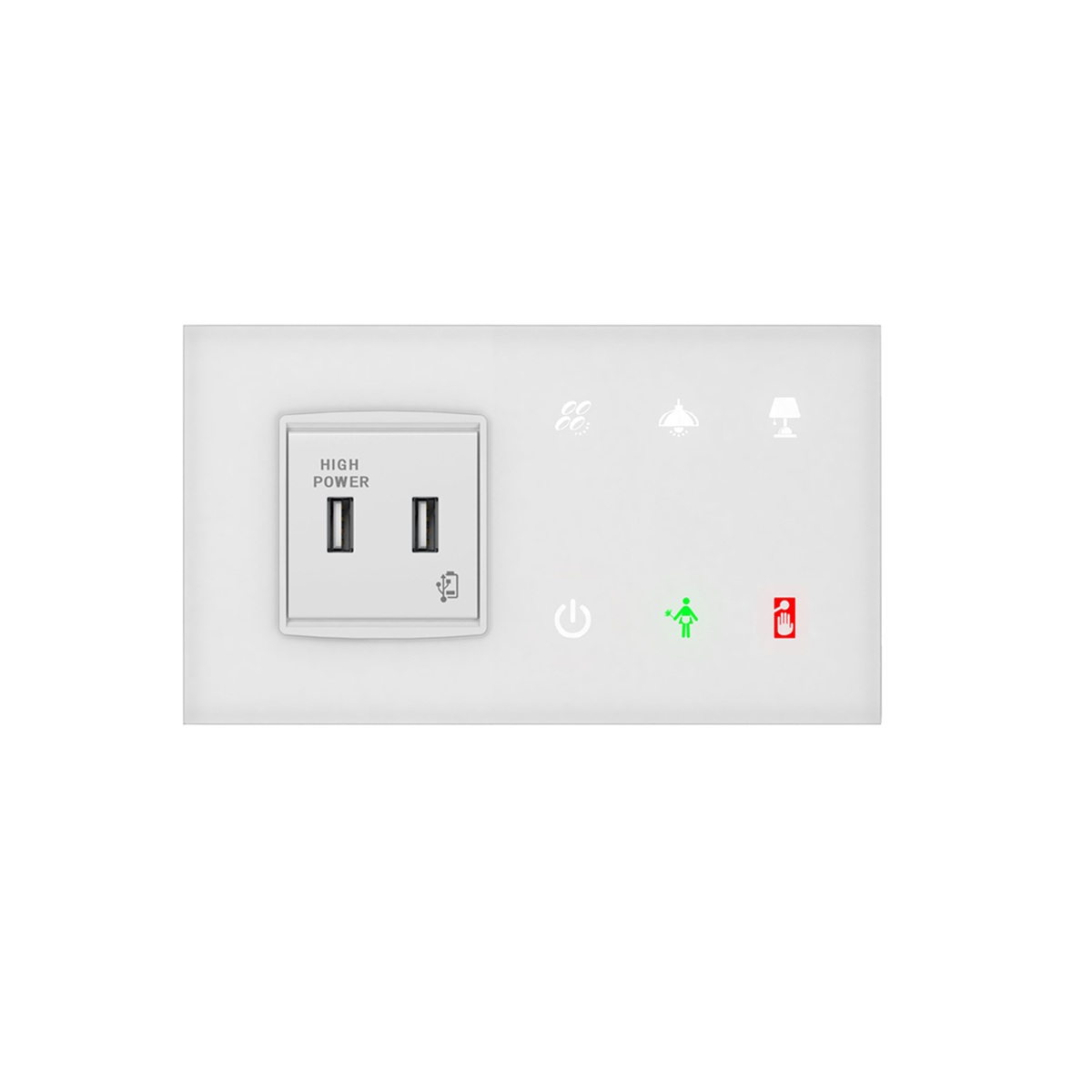

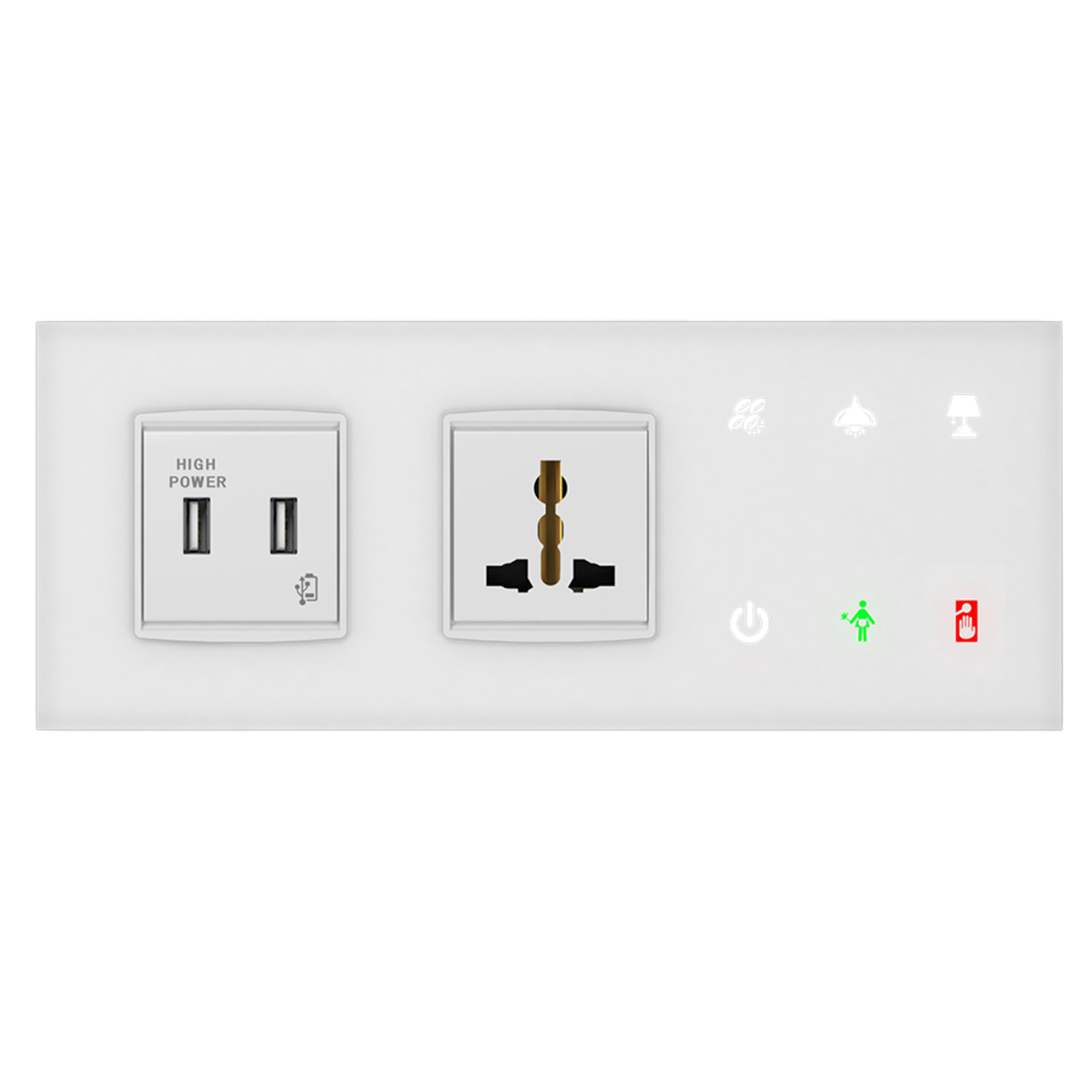

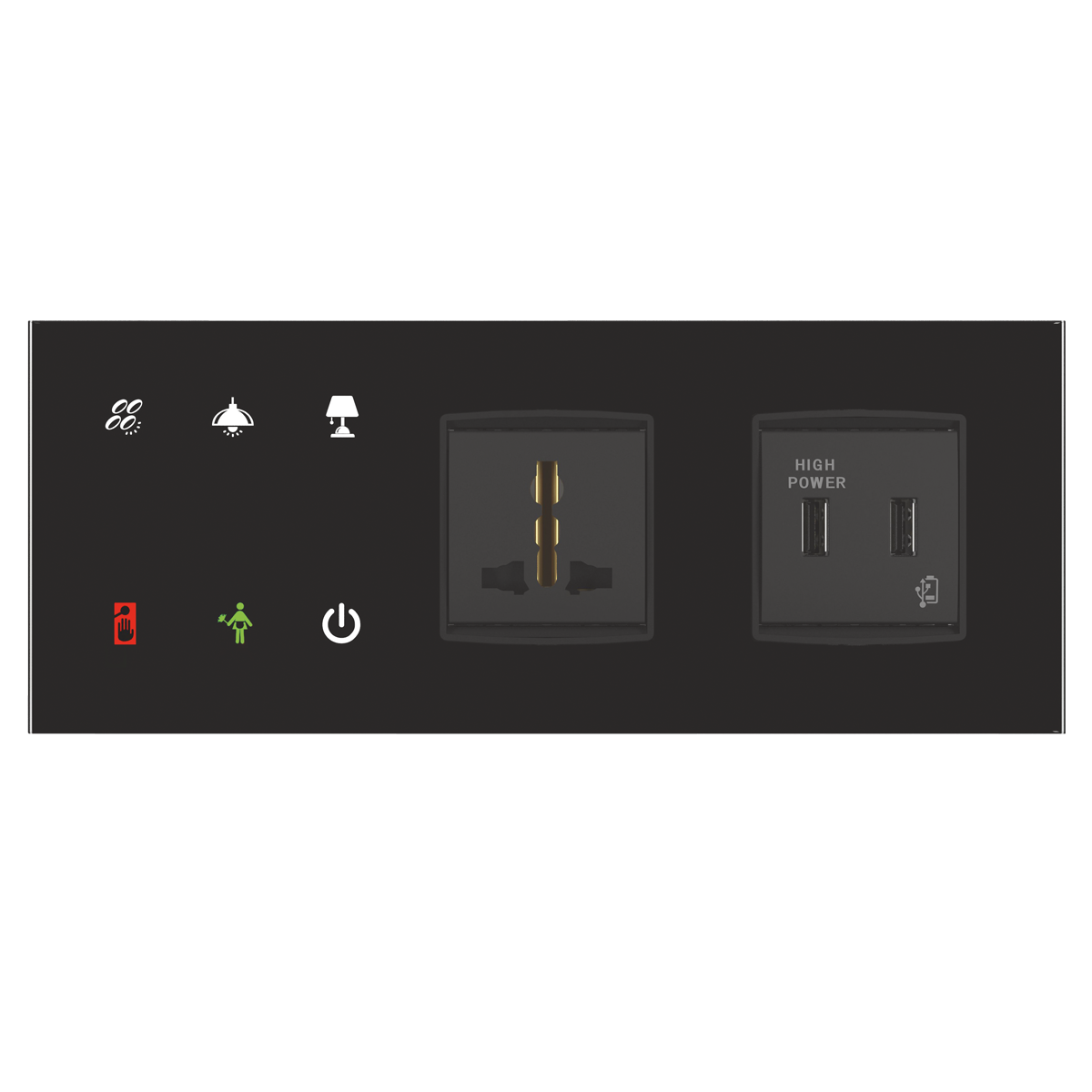

The GBP3-60 is available in several designs, making it a very flexible and effective solution for a variety of projects. The following variants are available:
- left/right version provides the same ease of operation from both sides of the bed.
- 2-MODULE (1F)/3-MODULE (2F) design enables you to add a touch module with one or two power supply modules, network connection or multimedia.
- black/white elegant design suitable for almost any interior.
GBP3-60 panel is equipped with six customizable touch buttons whose function can be software adapted to the requirements of the investor. Of course there is the possibility of using the "Master OFF", then you can select functions for switching and dimming of lighting, shading control, different scenarios etc.
Engraving of symbols is possible upon a request.
GBP3-60 can be equipped with a number of modules, for example.
- power AC sockets: French, British, Multi, and Shockproof
- other types of modules: USB, LAN, Media
The GBP3-60 panel is equipped with an ambient light sensor.
Individual symbols can be illuminated in one of three colours - red, green and blue.
GBP3-60/1F is designed for mounting into a double mounting box, GBP3-60/2F to a triple mounting box (distance between the centres of each of openings is 71 mm).
Number of buttons: 6
Supply voltage: BUS 27 V DC
Rated current from BUS: 25-50 mA (at 27 V DC)
Measurement: 1x external input for TC/TZ or 1x digital, brightness sensor
