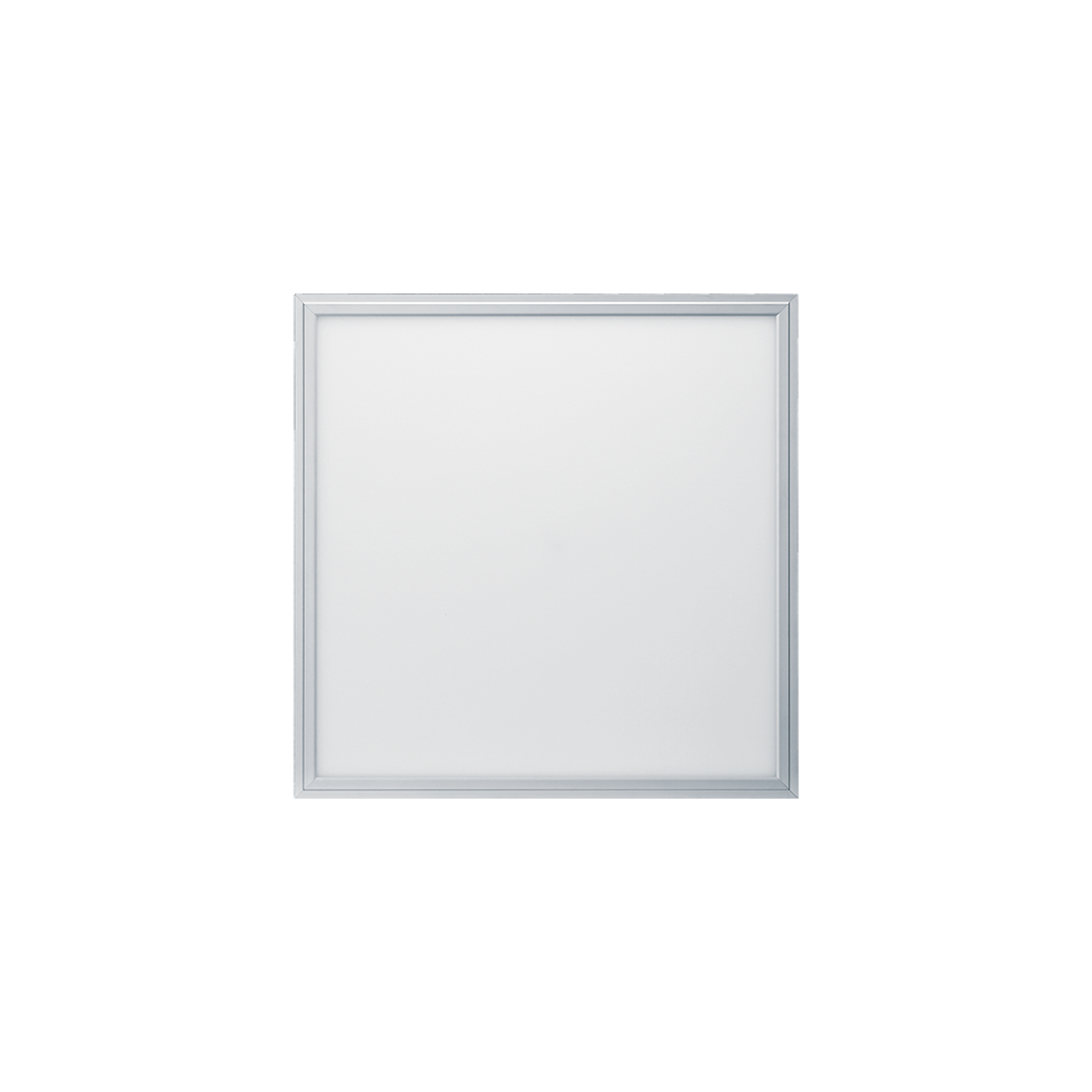

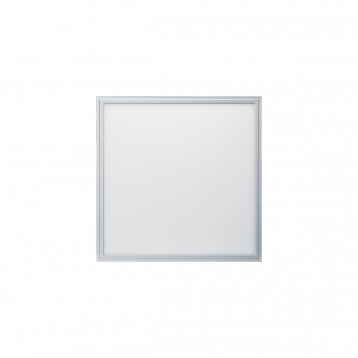

LED panel - LP-3030-3K

Office lighting for use with hanging from or cassette ceilings.

Effective way of illumination

Already when designing your office lighting, it is good to think about what light source to use before you can deal with replacing conventional luminaires with modern LED technology in the future. The panels are designed for insertion into cassette ceilings. However, they can be mounted in many different ways - directly under the ceiling, suspended on the strands under the ceiling, on the wall, in any position. Your imagination is not limited.

LED panel characteristics:

  • Dimension 30 x 30 cm for cassette ceilings or hanging from.
  • Increased IP protection against dust, partial protection against water.
  • Even surface adjustment .

Savings with LED panel:

  • Half the power, double the performance.
  • High life (no mirrors, ballast and active elements).
  • Without harmful materials.

LED panels - technical parameters:
Type: LP-3030-3K
Replacement for classic bulb [W]: 60
Power consumption [W]: 13
Light temperature [K]: 3 000
Luminous flux [lm]: 650
Voltage [V]: 9 - 24V
Frequency [Hz]: 50/60
Lifetime [h]: 35 000
Dimmable: No
Dimension [wxh - mm]: 295x295
Beam angle [°]: 120
Weight [g]: 1 000
Cover: IP 20
