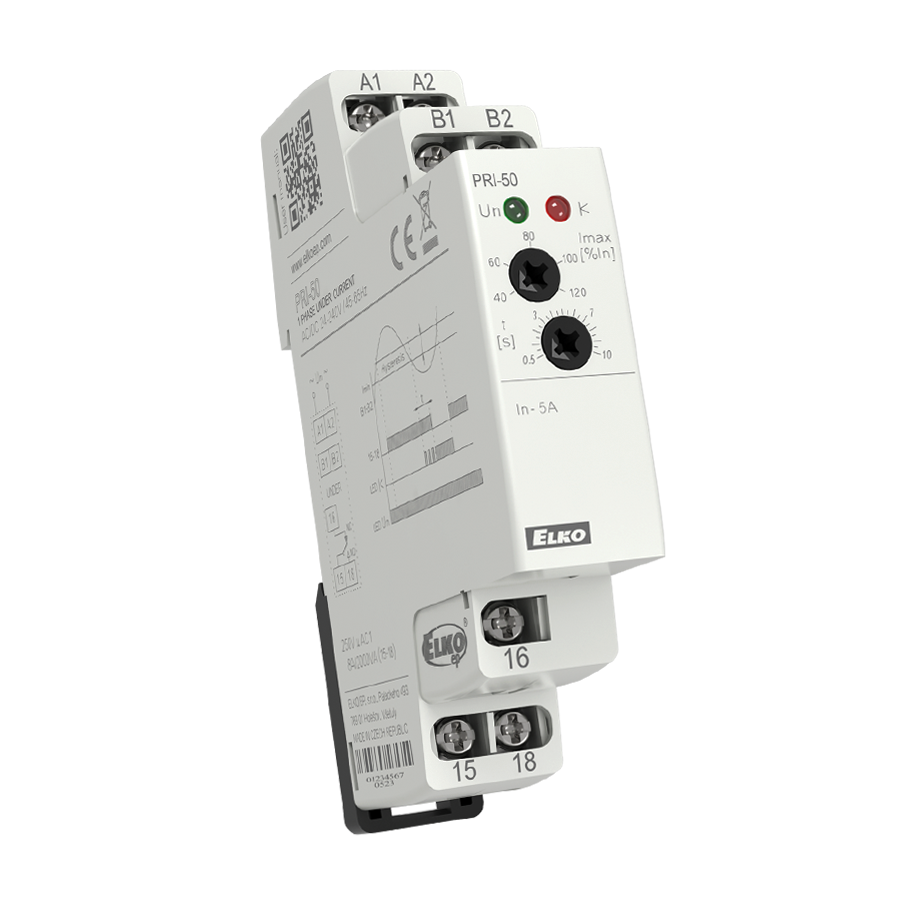

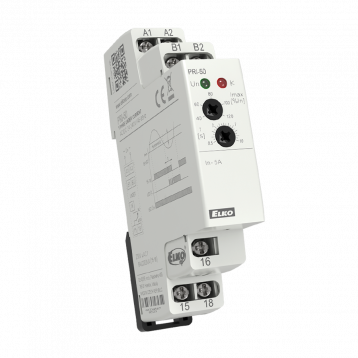

Current monitoring relay of Imin level in 1P - AC PRI-50

Monitors undercurrent connected to measuring inputs

EAN: 8595188142083 | Code: 4208 standard

Description

  • It is used, for example, to monitor the operation of pumps, interruptions of radiators or lighting.
  • Continuous setting of tripping current by potentiometer from 2 to 6 A AC.
  • Monitors the decrease in current magnitude below the level of Imin.
  • Adjustable delay 0.5 - 10 s (eliminate short current peaks, on of short...).
  • Possible to use for scanning of current from current transformer.
  • Power supply galvanically separated from the monitored current circuit.

Technical parameters

  • Voltage type: AC
  • Monitored levels: undercurrent
  • Monitored range: 2 - 6 A (50/60 Hz)
  • Output type: 1x CO, 8 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 24-240 V (AC 50/60 Hz)
