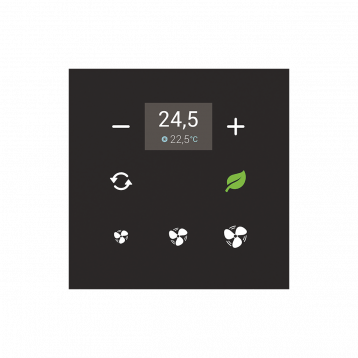

Glass room thermo-regulator GRT3-50 is part of a comprehensive range of glass iNELS3 control units for guest room management system (GRMS) and serves to regulate the temperature in the room. Thermo-regulator is also equipped with 3 symbols for controlling fancoil speed.
Glass room thermo-regulator GRT3-50 is part of a comprehensive range of glass iNELS control units for guest room management system (GRMS) and serves to regulate the temperature in the room.
GRT3-50 thermo-regulator has a display for displaying the current room temperature and desired temperature. To adjust the required temperature, it is possible to use the touch buttons with symbols "-" and "+".
GRT3-50 is also suitable for controlling fan coils and fan speed can be easily adjusted by using the touch buttons with symbols.
Thermo-regulator GRT3-50 also has a further two touch buttons whose function can be adjusted by software, for example fan coil on/off, heating/cooling or comfort temperature for heating or cooling.
Thermo-regulator is equipped with an integrated temperature sensor for ambient temperature measurement.
The glass room thermo-regulator is a design component of the iNELS system and is available in elegant black (GRT3-50/B) and white (GRT3-50/W) version.
Printing is possible to customize to the investor requirements.
Individual symbols can be illuminated in one of seven colours - red, green, blue, yellow, pink, turquoise and white.
GRT3-50 are designed for mounting into an installation box.
Number of buttons: 7
Supply voltage: BUS 27 V DC
Rated current from BUS: 85 mA (at 27 V DC)
Measurement: internal thermometer and humidity sensor, 1x external input for TC/TZ or 1x digital
