Power supplies PS-10

Switching stabilized power supplies with fixed output voltage, version 1-module.

UNTIL SOLD OUT.

DESCRIPTION

  • switching stabilized power supplies with fi xed output voltage, version 1-module.

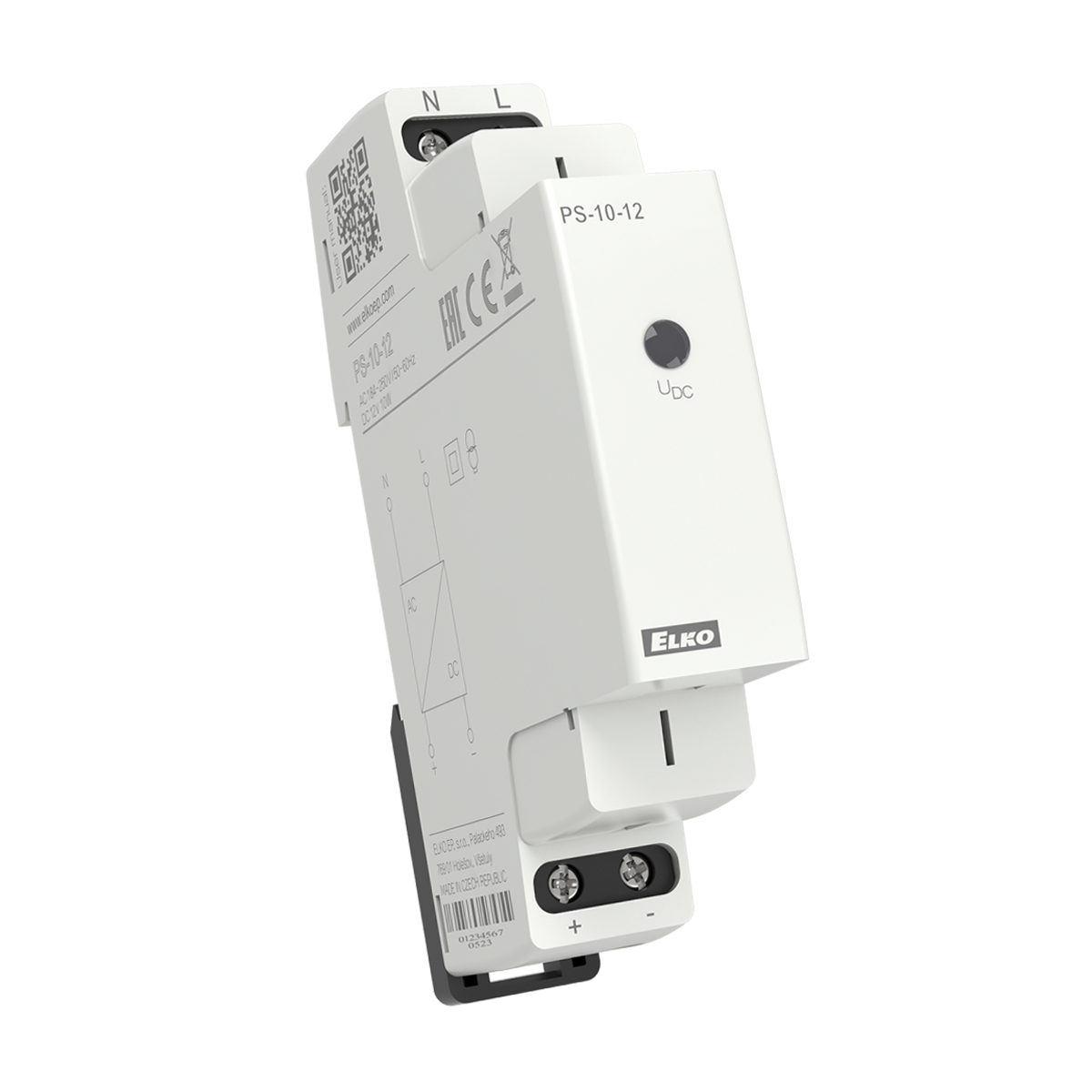

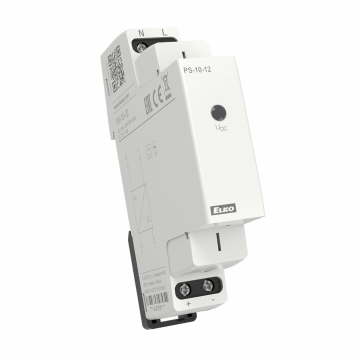

    - PS-10-12 - stabilized power supply 12 V/10 W.

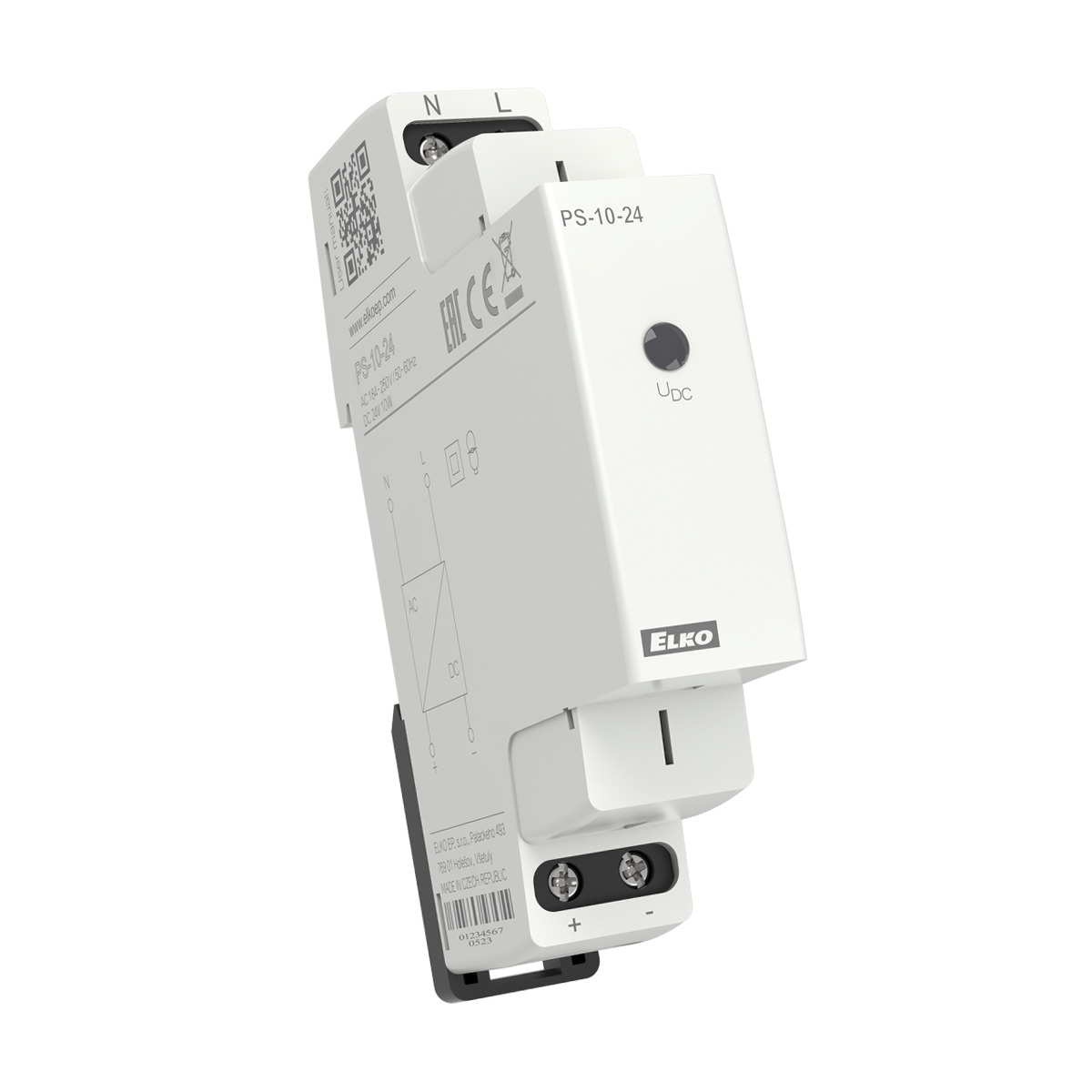

    - PS-10-24 - stabilized power supply 24 V/10 W.
  • Output current is limited by electronic fuse, in case maximal current is exceeded, the device switches off and after a shot time interval it again switches on.
  • Indication of output voltage by green LED on front panel (except PSB-10).
  • Temperature protection - if temperature is exceeded, the device switches off and after cooled down, it switches on again.

TECHNICAL PARAMETERS

  • Voltage range: AC 184 - 250 V / 50 - 60 Hz
  • Burden with full load (max.): 25 VA / 13 W
  • Electronic fuse: electronic protections short-circuit, over load, over voltage (from 120% of rated output)
  • Protection degree: IP40 device/ IP20 in-built in distribution board
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
  • Weight: PS-10-12: 65 g (2.3 oz.); PS-10-24 65 g (2.3 oz.)
