Repeater to extend the range RFRP-20

DESCRIPTION

• This signal repeater is used to extend the range between the controller and unit by up to 200 meters.
• It is designed to transmit a signal to up to 20 units.
• Indication:
  - green LED - supply voltage
  - red LED - active status (receiving and transmitting an RF signal)
• Programming is performed by a button.
• Communication frequency with bidirectional protocol RFIO.

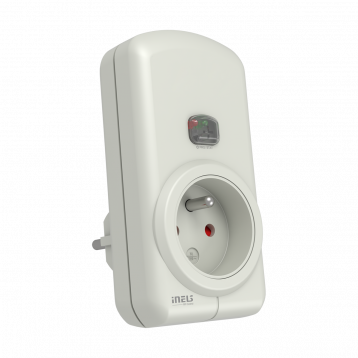

• Thanks to the socket design, installation is simple by direct insertion into the existing socket, the throughsocket function remains unchanged.

Available socket versions:

  a)  French (CZ, SK, PL, FR)
  b)  Schuko (HU, DE, RU, AT, RO, ES)
  c)  British (GB)

TECHNICAL PARAMETERS

• Number of connectable components: 20
• Supply voltage (frequency): AC 230-250 V (50-60 Hz) or 120 V (60 Hz)
• Design: socket-plug
• Dimensions: 60 x 120 x 80 mm
• Protocol: RFIO
