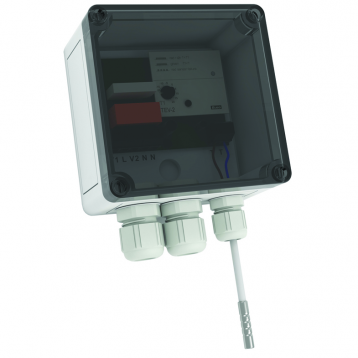

Thermostat TEV-2

Single thermostat with possibility of temperature management in adjustable range (it is possible to modify this range or make a special one on request).

DESCRIPTION

  • Used to regulate heating (or cooling) in demanding environments (outside, humidity, dustiness, etc.).
  • Thermostat is placed in water-proof box with IP65 protection, which enables installation outside, with in-built sensor.
  • TEV-2: control and indication elements are placed under transparent cover.
  • TEV-3: control and indication elements are placed directly on the cover (for easy orientation and frequent change of temperature).
  • Thermostat status is indicated by LED (2 colours).
  • Function of monitoring sensor disconnection and short-circuit.
  • Output 1x changeover / SPDT contact 16 A (AC-1).

TECHNICAL PARAMETERS

  • Voltage range: 230 V AC / 50 - 60 Hz
  • Input: max. 2.5 VA / 0.5 W
  • Faulty sensor indication: red LED flashing
  • Number of contacts: 1x changeover / SPDT (AgNi / Silver Alloy)
  • Operation position: any
  • Protection degree: IP65
  • Dimensions: 110 x 135 x 66 mm (4.33˝x 5.3˝x 2.3˝)
  • Weight: 270 g (9.5 oz.)
